池塘自动喂养机及三维造型设计[毕业论文+Solidworks模型+CAD图纸]

2021年2月10日22:54:27 发表评论浏览:744

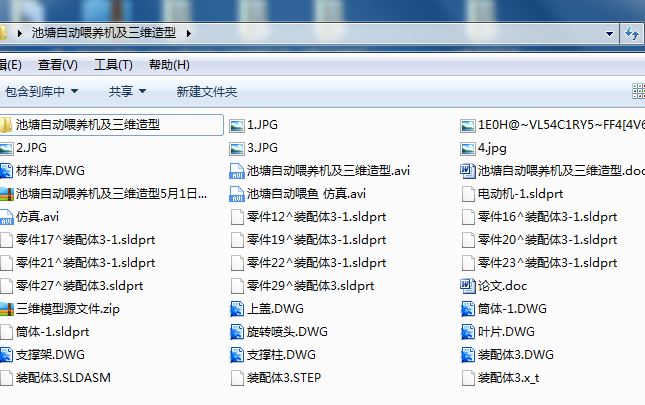

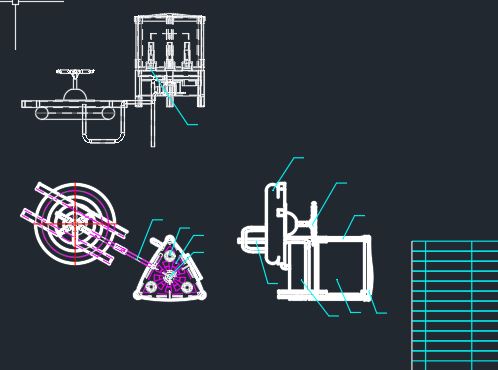

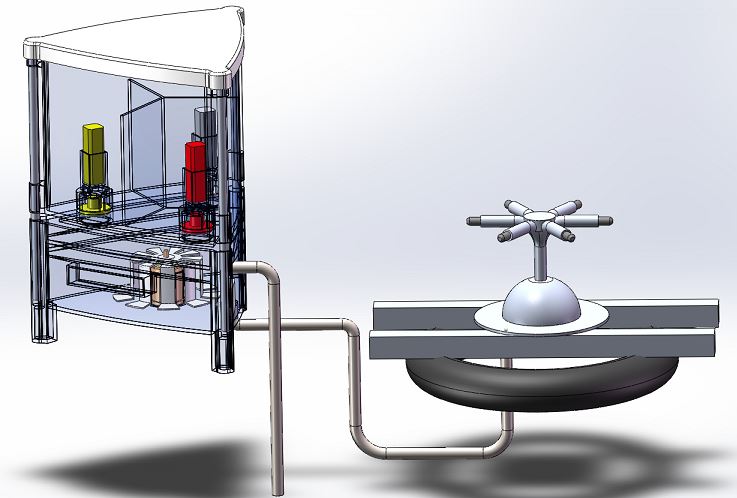

机械设计毕业论文:池塘自动喂养机及三维造型含论文,CAD图纸,三维

池塘自动喂养机及三维造型设计[毕业论文+Solidworks模型+CAD图纸]

池塘自动喂养机及三维造型设计[毕业论文+Solidworks模型+CAD图纸]

池塘自动喂养机及三维造型设计[毕业论文+Solidworks模型+CAD图纸] 池塘自动喂养机及三维造型设计[毕业论文+Solidworks模型+CAD图纸]

摘要:

在水产养殖行业中,增氧技术,疾病防治,饲料配方等方面都已有相当成熟的产品。唯有饲料投喂,直至目前还使用比较落后的人工划船手动抛料的方法,这种方法抛洒不均匀,影响饵料的利用率,还破坏池塘水质;既费时又费力,还受日晒雨淋之苦。当前市场上所销售的传统水产喂养机虽然型号齐全,功能优越,但仍不能满足水产养殖行业。例如普遍使用的抛洒箱式喂养机,其组成包括料箱盖、料箱、接料斗、送料振动盒、抛料盘罩总成、主电机、防雨板、偏心连杆、振动电机、振动电机座、电器控制盒、调整手柄、锁紧螺母、机架及地线。该机能替代人工自动定时、定量喷洒各种规格的颗粒饲料喂养。由于采用振动式原理进行分料,从根本上解决了其它机型在分料过程中易产生的问题,如卡料、转堵等故障。但该机只能安放在池塘边或者跳板上,抛洒角度只有90-100度,投料距离只有10米,一部喂养机完全满足不了一个池塘的需要,不能完成全塘均匀投喂。

为了改进这些缺陷,某些公司也研制了一种全自动喂养机,该设备主要由控料箱、送料管、喷料器、浮艇等组成。所有操作数据均由液晶显示器显示,只需要调整按钮,显示器就能显示出相应控制数据,包括投饵份量,投饵速度,投饵间隔。抛料器以每分钟1440转360度全方位抛洒饵料,抛洒直径可达20米,投饵距离远,投饵

Abstract:

The aquaculture industry, aeration technology, disease prevention, feed formulation and other aspects have beenquite mature products. Only the feed, until now also uses the method of artificial rowing manual polishing material is backward, this method by the uneven, affecting the utilization of food, but also destroy the pond; which is time-consuming and laborious, but also by the sun and rain. Traditional fisheries feeding machine sales market currentalthough models complete, superior performance, but still can not meet the aquaculture industry. For example, the widespread use of throwing type feeding machine, which comprises a box cover, hopper, hopper, feeding vibration box, throwing tray cover assembly, a main motor, flashing, the eccentric connecting rod, the vibration motor, vibration motor, electric control box, a regulating handle, locks the nut, machine frame and wire. Granular feed and it can substitute for artificial automatic timing, quantitative spraying of various specifications. Due to the vibration principle ofmaterials, from the fundamental solution to the other type is easy to produce the material in the process of problems,such as card data, blockage fault. But the machine can only be placed in the pond or the springboard, throwing angleonly 90-100 degrees, the feeding distance of only 10 meters, a feeding machine which can not meet the needs of a pond, do not complete a full tang uniform feeding.

In order to improve these shortcomings, some companies have developed a kind of automatic feeding machine, the device is mainly composed of a control box, a feeding tube, the dispenser, floating boat. All data were displayed by the LCD, only need to adjust the display button, will show the corresponding control data, including feeding amount,feeding speed, feeding interval. Throwing feeder to 1440 per minute to 360 degrees all-around throwing bait, baitthrowing up to 20 meters in diameter, long distance, large area uniform feeding, feeding. Completely fill the throwingtype feeding machine faults.

目录:

摘要:        1
Abstract:        2
目录:        4
一,自动喂鱼机的背景        4
1.1自动喂鱼机的现状        4
1.2自动喂鱼机的意义        5
1.3自动喂鱼机现有的分类        5
二,设计方法        6
2.1自动喂鱼机设计思路        6
2.2自动加料结构的选用及其设计        6
2.3电机的选用及计算        8
他励        10
并励        10
串励        10
复励        10
2.4液压泵的选用及注意事项        11
联轴器        12
液压油箱        12
滤油器        13
三,设计方案验证        14
3.1输送方案的可行性分析        14
四,总结        14
五,致谢        14
六,参考文献        15

一,自动喂鱼机的背景

1.1自动喂鱼机的现状

在水产养殖行业中,增氧技术,疾病防治,饲料配方等方面都已有相当成熟的产品。唯有饲料投喂,直至目前还使用比较落后的人工划船手动抛料的方法,这种方法抛洒不均匀,影响饵料的利用率,还破坏池塘水质;既费时又费力,还受日晒雨淋之苦。当前市场上所销售的传统水产喂养机虽然型号齐全,功能优越,但仍不能满足水产养殖行业。例如普遍使用的抛洒箱式喂养机,其组成包括料箱盖、料箱、接料斗、送料振动盒、抛料盘罩总成、主电机、防雨板、偏心连杆、振动电机、振动电机座、电器控制盒、调整手柄、锁紧螺母、机架及地线。该机能替代人工自动定时、定量喷洒各种规格的颗粒饲料喂养。由于采用振动式原理进行分料,从根本上解决了其它机型在分料过程中易产生的问题,如卡料、转堵等故障。但该机只能安放在池塘边或者跳板上,抛洒角度只有90-100度,投料距离只有10米,一部喂养机完全满足不了一个池塘的需要,不能完成全塘均匀投喂。

为了改进这些缺陷,某些公司也研制了一种全自动喂养机,该设备主要由控料箱、送料管、喷料器、浮艇等组成。所有操作数据均由液晶显示器显示,只需要调整按钮,显示器就能显示出相应控制数据,包括投饵份量,投饵速度,投饵间隔。抛料器以每分钟1440转360度全方位抛洒饵料,抛洒直径可达20米,投饵距离远,投饵面积大,投饵均匀。完全填补了抛洒箱式喂养机的缺点。

1.2自动喂鱼机的意义

⑴节省劳动力,降低生产成本。

⑵提高池塘鱼虾的均匀度。

⑶减少饲料的使用。

⑷解决破坏池塘水质的问题。

资源下载资源下载价格39.9立即支付
以上是资料介绍,如需要完整的请付费下载. 本资料已审核过,确保内容和网页里介绍一致.
无需注册登录,付款后即可下载获取完整的论文资料.
