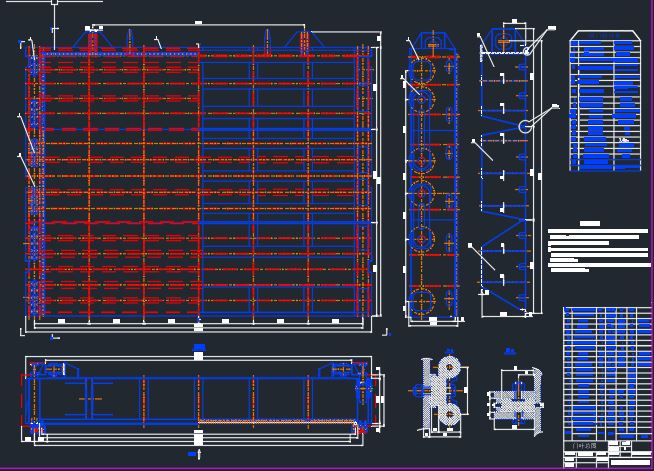

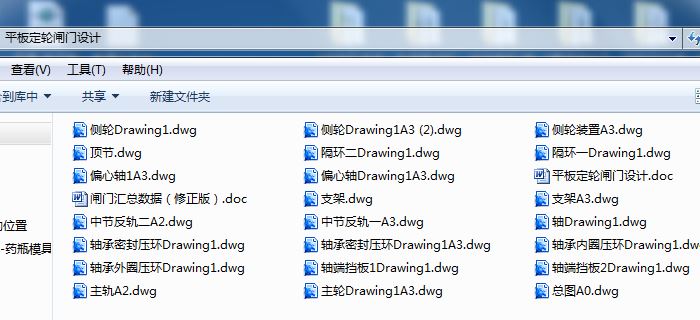

平板定轮闸门设计[毕业论文+CAD图纸]
![平板定轮闸门设计[毕业论文+CAD图纸]](https://www.chilunren.com/wp-content/uploads/2021/02/1613229637-0000.jpg)
摘 要
水利枢纽的主要任务之一就是拦洪、蓄洪、泄洪,根据枢纽预定功能,水流量大小等条件,枢纽设有表孔、深孔、导流孔、隧洞、放空洞等泄水通道。闸门是控制这些通道过流的机械设备,它运行的好坏直接影响水利枢纽的安危,因此选好闸门启闭机的形式,做好金属结构的总体布置即为重要,其次是解决所采用的材料、计算结构安全、选好支承式、解决闸门运行时各种复杂的水力学问题,精心搞好设计,才能解决设备安全顺利地完成枢纽所赋予的任务。本设计是一平板定轮钢闸门,所起作用是尾水门兼事故检修闸门,本文根据所提供的工程概况,详细地论述了闸门的步骤、方法及内容。设计内容以顶节门叶为主,论述的较为具体,中节和底节门叶结构及设计方法与顶节答题类似,所以没有再展开说明,仅将有关尺寸数据列出。
关键字:平板定轮闸门、门叶、顶节。
Abstract
One of the main tasks of Water Control Project is to stop flood , storage flood and discharge flood .In accordance with predetermined hub function , the size of water flow conditions , the hub equipped with lip-deep holes , deep hole ,diversion hole , tunnel , drainage channels , and so on .The gate , which is the equipment to control flow through these channels , runs a direct impact on the safety of key water control project , so selecting the form of gate hoist do a good job in the overall layout of metal structures is extremely important , then resolve the materials which be used ,calculate the safe of structure ,choose good support-style , find solution to the complex hydraulics problem of the gate , then resolved the design of equipment safety and completed the tasks entrusted to the hub successfully . In this article , designed by taking the flat steel gate and tail gate and tail gate accident repair water gate , design the gate adoption of the basic information given .This article discusses the design of the gate steps , methods and content in detail . The design of the contents is mainly about the top section which is discussed specifically . In the Festival and the Festival at the end of the door leaf structure and design methods and top-section generally similar ,therefore , there is no further description .
Key words :flat steel gate ,the door leaf , the top section .
目 录
摘 要 I
Abstract II
1 绪 论 1
1.1闸门的作用 1
1.2闸门的分类 1
1.2.1 按闸门的工作性质分类 1
1.2.2按闸门结构类型分类 1
1.2.3按孔口性质分类 2
1.2.4闸门的使用材料分类 3
1.3平面钢闸门的组成 4
1.3.1门叶结构的组成 4
1.3.2埋设构件 5
1.3.3闸门的启闭设备 6
2 设计工况和主要的设计参数 7
3 闸门的结构布置 8
3.1闸门的选型 8
3.2平面闸门的结构布置 9
3.2.1闸门的尺寸选择 10
3.2.2闸门的分节 10
3.2.3支承跨度 10
3.2.4闸门材料 10
3.2.5梁格形式选择 10
3.2.6总水压计算 11
4门叶结构计算 14
4.1主梁的布置 14
4.1.1主梁的数目 14
4.1.2主梁的位置 14
4.2面板的设计 15
4.3水平次梁的设计 16
4.3.1载荷和内力计算 17
4.3.2截面选择 18
4.3.3强度验算 20
4.3.4挠度验算 20
4.4主梁设计 20
4.4.1主梁的形式 20
4.4.2主梁的荷载 21
4.4.3截面选择 21
4.4.4主梁的截面特性计算 22
4.5顶梁设计 24
4.6竖直次梁设计 25
4.6.1截面选择 25
4.6.2内力计算 25
4.6.3截面特性计算 26
4.6.4强度计算 27
4.7边梁设计 28
4.7.1边梁所受荷载 28
4.7.2截面特性 29
4.8中节及底节门叶结构 30
4.8.1中节门叶结构 30
4.8.2底节门叶结构 31
5闸门的零部件设计 32
5.1行走支撑装置 32
5.2起吊轴及其计算 33
5.3启闭力计算 34
5.3.1闭门力计算 34
5.3.2启门力计算 35
5.4埋件计算 36
结束语 38
致 谢 39
参考文献 40
外文翻译原文 41
外文翻译译文 54
1 绪 论
1.1闸门的作用
闸门是设置在水工建筑物过水孔口上,用于控制水流的通、断或调节流量的设备。它是水工建筑物的重要组成部分之一,可以根据需要封闭建筑物的孔口,也可以全部或局部开启孔口,用于调节上下游水位和流量,从而获得防洪、灌溉、供电、、发电、通航、过木过筏等效益,还可以用于排除漂浮物、泥沙、冰块等,或者为相关建筑物和设备的检修提供必要条件。闸门通常设置在取水输水建筑物的进、出水口等咽喉要道,通过闸门灵活可靠地启闭来发挥它们的功能和效益以及维护建筑物的安全。例如,在一些取水供水工程的输水管道上一般设置节制闸门,用于根据需要调节控制流量,在泵站进出口和一些隧道、涵管、倒虹管等的进出水口一般设置有检修闸门,为检修水工建筑物和泵组设备提供条件,在水库溢流坝或溢洪道上一般设置有泄洪工作闸门,用于控制水库的水位和泄往下游的洪水流量,组大限度地发挥水库的功能效益.
1.2闸门的分类
闸门的种类繁多,分类的方法也很多,一般可按闸门的工作性质、结构特征、孔口性质、使用材料和加工方法等标准来分类。
1.2.1 按闸门的工作性质分类
闸门按工作性质可分为工作闸门、事故闸门、检修闸门。
工作闸门是指水工建筑物正常运行时需要关闭孔口的闸门。这种闸门一般使用频繁,要求在动水条件下启闭,甚至部分开
