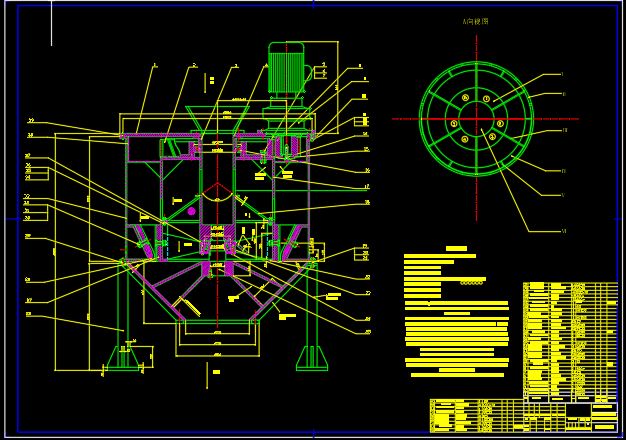

![Φ1200熟料圆锥式破碎机设计[毕业论文+CAD图纸]](https://www.chilunren.com/wp-content/uploads/2021/02/1613401779-捕获.jpg)
Φ1200熟料圆锥式破碎机设计[毕业论文+CAD图纸]
![Φ1200熟料圆锥式破碎机设计[毕业论文+CAD图纸]](https://www.chilunren.com/wp-content/uploads/2021/02/1613401780-1111.jpg)
摘 要
本文介绍了熟料圆锥式破碎机,该破碎机采用超慢速剪切细碎原理。具有细碎效率高、功耗极低、无扬尘、几乎无振动。使用寿命延长5~7倍,易损配件费用底,结构简单,操作容易,维修极为方便。它主要由电动机、机架、外筒体、分级罩、回转筒、空心轴、大齿轮、小齿轮 、动颚板和静颚板组成。工作时,起动减速电机,减速电机轴端的小齿轮带动大齿轮转动,从而使回转筒下端的定动颚板之间形成一个动态的 V形圆环破碎腔,物料有进料筒落下,细粉及细颗粒通过筛板分离落入回转筒下部至漏斗排除,粗颗粒由锥形筛板均匀地撒入V形破碎腔内受定动颚板剪磨,由大颗粒变成小颗粒或粉末而落至漏斗入口,从漏斗出口排出.该破碎机广泛应用于金属、非金属矿、冶金、材料、化工、磨料和建材等行业的物料破碎领域.
关键词:圆锥式破碎机 超慢速剪切 熟料细碎
Abstract
This text has introduced the taper type breaker of grog , this breaker is adopted and shears the principle in small, broken bits ultra and slowly rapidly. Have in small, broken bits efficiency high, consumption extremely low, have and raise dust, for vibration. Service life lengthens 5-7 times, apt to decrease the expenses bottom of the fittings, the structure is simple, It is easy to operate, it is extremely convenient to maintain. Mainly by motor, framework, other tube body, put on, turn tube, empty mandrel, big gear wheel, pinion, move it jaw board and quiet jaw board make up round in grades. While working, start and moderate the electrical machinery, the pinion which moderates the axle end of the electrical machinery drives the big gear wheel to rotate, Make and turn to move jaw board form first dynamic V round ring broken definitely tubes of underpart round, Supplies have charge-in tube drop, detailed powder and through sift detailed particle board separate and fall into and turn, Thick particle sift by toper board spread and enter V broken move jaw board cut and rubed definitely even, Turns from big particle into a tiny particle or the powder and falls, discharge from the funnel export . This breaker is applied to the supplies broken field in metal, nonmetal ore, metallurgy, material, chemical industry, abrasive and building materials, etc. extensively.
Keywords: cone crusher Shear ultra and slowly rapidly The grog is in small, broken bits
目 录
0 引言……………………………………………………………………1
1 圆锥式破碎机的总体设计……………………………………….…1
1.1 机器设计的要求……………………………………………………1
1.2 圆锥式破碎机的工作原理…………………………………………2
1.3 圆锥式破碎机的设计构思…………………………………………2
1.4 圆锥式破碎机的使用和效果………………………………………4
2 圆锥式破碎机零部件的设计和计算…………………………………6
2.1 齿轮的的设计和计算………………………………………………6
2.2 滚动轴承的设计和计算……………………………………………12
2.3 螺栓组的设计计算………...……………………………………16
2.4 鄂板的设计计算 ………………………………….………………17
4结论………………………………………………………………………20
5致谢…………………………………………………………………… 21
6参考文献…………………………………………………………………22
7附件清单……………………………………………………………… 23
0 引言
在水泥生产中,粉磨过程消耗大量能源。粉碎的任务是提供具有一定粒度、粒度组成和充分解离而又不过粉碎的加工原材料,以便于下一步的加工、处理和使用。世间上约12%的电能用于粉碎物料,其中约15%用于破碎,85%以上消耗于磨碎,磨机的效率只有1%,破碎机的效率达10%,而且与磨机相比,破碎机能耗低,金属消耗最小,运转维护简单。因此,有用破碎机部分取代磨机的趋势,也即当前粉碎领域所提倡的“多碎少磨”。
同时,入磨粒度的大小是影响磨机产量的主要因素。若入磨物料粒度较大,磨机第一仓必须加入较多的大球才能击碎物料,这样磨机的第一仓在一定的程度上起着破碎作用。这在粉磨中是极不合理的。入磨粒度越大,磨机产量越低,电能消耗越大,磨机产量与入磨物料粒度的四次方根成反比。给料粒度越小,磨机产量越高,能源消耗下降;反之,产量降低,能耗提高。
下面就2003年水泥市场进行展望和分析
一、2003年水泥总量需求分析
1、国家的宏观经济政策有利于水泥总需求量保持稳定
水泥工业的增长速度与国民经济的增长速度密切相关,2003年是”十六”大召开后的第一年,按照”十六大”制定的奋斗目标,到2020年要实现国内生产总值比2000年翻两番的要求,这就意味着在这20年中我国的国民经济发展速度必须达到年均递增7.8%,如果2003年国际经济政治环境不发生重大影响的突发事件,国内不出现大范围的严重自然灾害和其他重大的问题,GDP增长率仍可以保持在7%以上的水平.建国50多年来的统计资料表明,当GDP的增长速度高于9%时,水泥工业的发展速度大于9%;当GDP的增长速度低于4.2%时,水泥工业就会出现零增长或负增长.根据此规律,从总的趋势来讲2003年我国水泥的总需求量应呈增长态势.另外,据权威人士表示,中国水泥将继续实施积极的财政政策,直到经济形成自身良性循环的发展的动力,积极的财政
