机械设计毕业论文:钻孔卧式双面组合机床设计含论文,CAD图纸

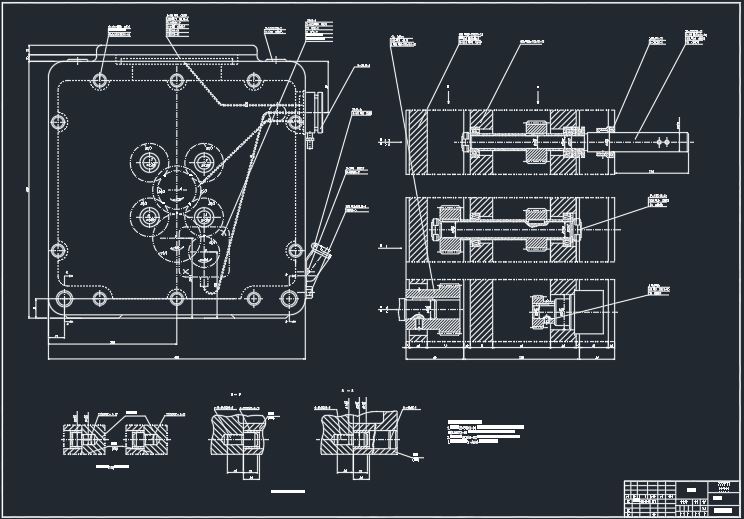

![钻孔卧式双面组合机床设计[毕业论文+CAD图纸]](https://www.chilunren.com/wp-content/uploads/2021/02/1613221024-捕获.jpg)
钻孔卧式双面组合机床设计[毕业论文+CAD图纸]
![钻孔卧式双面组合机床设计[毕业论文+CAD图纸]](https://www.chilunren.com/wp-content/uploads/2021/02/1613221024-0000.jpg)
摘 要
目前,组合机床主要是用于平面加工和孔加工两类。现随着自动化的发展,其工艺范围正在扩大可以完成如:车外圆、行星铣削、焊接、热处理等等切削与非切削工作。它在汽车、电机、仪器仪表等轻工业行业中获得了广泛的应用,它在机床、机车、工程机械等制造业中也已推广应用。即 这篇毕业设计论文主要阐述的是一套系统的关于钻孔卧式双面组合机床的设计方法。它是组合机床中的一种。内容分为三章,第一章主要介绍了组合机床的现状和前景及它的特点。第二章介绍了组合机床的总体设计,包括对加工零件的工艺分析、通用部件的选择和机床的布置等等。第三章是多轴箱设计的全过程。本书均采用国家法定计算单位,国家标准、颁布标准。
设计考相关专业书籍,但由于设计者的水平和经验有限,书中难免有错误和不足之处,敬请读者批评指正。
关键词:组合机床,钻孔卧式双面组合机床,多轴箱
ABSTRACT
Presently, combination machine tools are mainly used for plane processing and hole processing. With the development of the mechanical automation, its technological scopes are expanding. At present, they can accomplish those cutting and non-cutting work of cylindrical vehicles, planetary milling, welding and heat treatment. Combination machine tools are widely used in those light industries such as automobiles, electrical machinery and instruments and also applied in manufacturing industries of machine tools, locomotives, and engineering machinery. That is to say, the application scope of combination machine tools will be expanded wildly and it will be used in all kinds of industries. This paper is mainly explained of a systematic method of designing the horizontal drilling double combination machine tool, which is one of the disposing forms of combination machine tools. This paper covers three chapters. The first chapter introduces the present situation, future and characteristics of combination machine tools; and the second chapter is focusing in the total design of combination machine tools, including the technological analysis of processing components, how to choose common components and the arrangement of machine tools; the last chapter is the whole process of the design of multi-axle box.
This design is totally under the guiding of supervisor Li Xianmin and I have consulted many relevant books. But because the limitation of my capability and experience, this paper inevitably has some mistakes and shortcomings. Comments and critics of readers are all pleased.
Keywords: combination machine tools,horizontal drilling double combination machine tool, multi-axle box
目 录
中文摘要 Ⅰ
英文摘要 Ⅱ
第1章 绪论 1
§1.1组合机床概述 1
§1.2组合机床设计步骤 3
第二章 组合机床总体设计 4
§2-1工艺方案的拟定 4
§2-2 组合机床切削用量的选择 6
§2-3 组合机床总体设计“三图一卡” 8
2.3.1被加工零件工序图 8
2.3.2加工示意图 9
2.3.3机床联系尺寸总图 14
2.3.4组合机床生产率计算卡 17
第三章 组合机床多轴箱设计 19
§3-1绘制多轴箱设计原始依据图 19
§3-2主轴、齿轮的确定及动力计算 20
§3-3多轴箱的传动设计 21
§3-4多轴箱坐标计算、绘制坐标检查图 25
§3-5绘制多轴箱总图及零件图 28
第四章 结论 31
参考文献 32
致谢 33
第一章绪论
§1.1组合机床概述
组合机床是用系列化、标准化的通用部件为基础,配以少量专用部件组成的,能加工一种(或几种)零件的一道(或几道)工序的高效率专用机床。
组合机床的通用部件和标准件约占70-80%,这些部件是系列化的,可以进行成批生产。其余20-30%的专用部件是由被加工零件的形状,轮廓尺寸,工艺和工序来决定,如夹具,主轴箱,刀具和工具等。
组合机床常用的通用部件有:床身(侧底座)、底座(包括中间底座和立柱底座)、立柱、动力箱、动力滑台、各种工艺切削头等。对于一些按顺序加工的多工位组合机床,还具有移动工作台或回转工作台。
动力箱、各种工艺切削头和动力滑台是组合机床完成切削主运动和进给运动的动力部件,其中还有可能同时完成切削主运动和进给运动动力头。
床身、立柱、中间底座等是组合机床的支承部件,起着机床的基础骨架作用。组合机床的刚度和部件之间的精度保持性,主要由这些部件保证。
除了上述主要部件之外,组合机床还有各种控制部件,主要指挥机床按顺序动作,以保证机床按规定的程序进行工作。
组合机床是一种自动化或半自动化的机床。无论是机械电气或液压电气控制的都能实现自动循环。半自动化的组合机床,工人只要将工件装夹好,按一下按钮,机床即可自动进行加工,加工一个循环停止。自动化的组合机床,工人只要将工件放到料斗或上料架上,机床即可连续不断的进行工作。
组合机床一般采用多轴,多刀,多工序,多面,多工位同时加工,是一种工序集中的高效率机床。加工孔的组合机床,刀具是借助钻模板和镗模架来导向,所以能稳定的保证产品质量。
它的特点有:
1.主要用于箱体零件和复杂的孔面加工。
2.生产率高。因为工序集中,可多面、多工位、多轴、多刀同时自动加工。
3.加工精度稳定。因为工序固定,可选用成熟的通用部件、精密夹具和自动工作循环来保证加工精度的一致性。
4.研制周期短,便于设计、制造和使用维护,成本低。因为通用化、系列化、标准化程度高,通用零部件占70-90%,通用部件可组织批量生产进行预制或外购。
5.自动化程度高,劳动强度低。
6.配置灵活。因为结构模块化、组合化。可按工件或工序要求,用大量通用部件和少量专用部件灵活组成各种类型的组合机床及自动线;机床易于改装,产品及工
